NorTide black IP67 pushbutton with integrated fuse | Green Led 12V/24V

€25.00

Upgrade your dashboard with NorTide – The Perfect Stainless Steel Switches for a Luxury Look and Reliable Functionality!

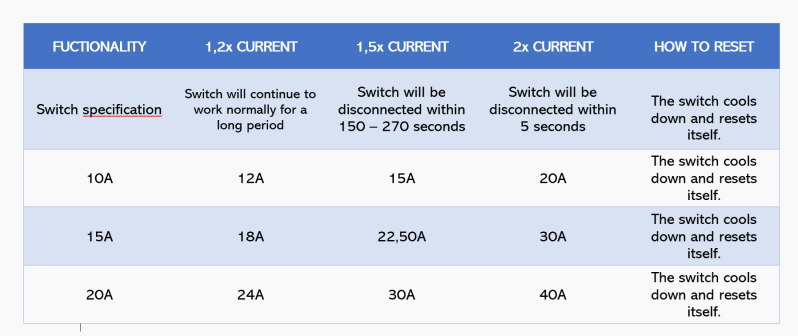

This button has an integrated circuit breaker build into the housing of the button. As soon as the current rises above a certain threshold, the circuit breaker will seamlessly interrupt the circuit, protecting the electronics

Specifications:

  • IP67 waterproof - Dustproof and submersible
  • Integrated circuit breaker - Ranging from 5 to 20Amps
  • Made of black anodised aluminium - for a bad-ass look!
  • 12V / 24V multivoltage - Suitable for all boats!
  • Switches up to 20A - No need for bulky relays anymore.
  • Integrated cable - Standard 60cm cable length
  • Momentary or Latching - Suitable for, for example, a horn (momentary) or lighting (latching)
  • Green integrated LED

Scroll down for more information!

Technical properties
Installation diameter
Outer diameter
Voltage
Maximum current
Color LED
Contacts
Switching


Material properties
Housing material
Knob material
Contact material
Base material

Environmental properties
IP value
Operating pressure force
Nut tightening torque


19mm
22mm
12V/24
20A
Green
1X NO
Momentary or latching


Anodised aluminium
Silver Alloy
Plated silver
PBT



IP67
3 - 5N
5 - 14Nm

Electrical properties
Operating temperature:        -10 to +50 °C
Mechanical life:                          55,000 cycles
LED Lifespan:                              40,000 hours
Front IP Rating:                          IP67 (front)
IP Value rear:                               IP65
Contact resistance:                   (50mΩ)
Nut tightening torque:            5- 14Nm
